CHASSIS: Spartan Gladiator LFD w/ 10" Raised Roof
ENGINE: Cummins X12 - 455 HP
PUMP: Hale DSD - 1500 GPM
OPERATOR'S PANEL: Side Mount
WATER TANK: 1000 Gallon Hi/Low Poly
FOAM TANKS: 30 Gallon Class "A"
FOAM SYSTEM: Elkhart Eductor
NFPA LIGHTING: Whelen
FEATURES: Automatic Tire Chains on Rear Axle
   6" Front Suction
   EMS Compartments in Crew Area
   Trashline Discharge in Front Bumper
   Pump Panel Enclosed Behind Roll-Up Door
   Roll-Up Doors on Body Compartments
   Powered Aluminum Diamond Plate Hose Bed Cover
   Suction Hose Compartments Inboard of Roll-Up Doors
   Ladder Comartment Through Tank
   Full-Depth Side Compartments
   SCBA Bottle & Extinguisher Compartments in Rear Wheel Wells
   Stainless Steel Rear Access Ladder
   Rear Traffic Control Light

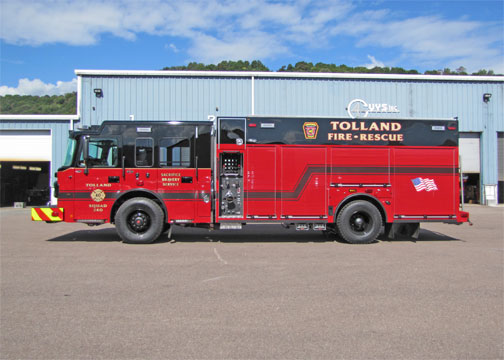

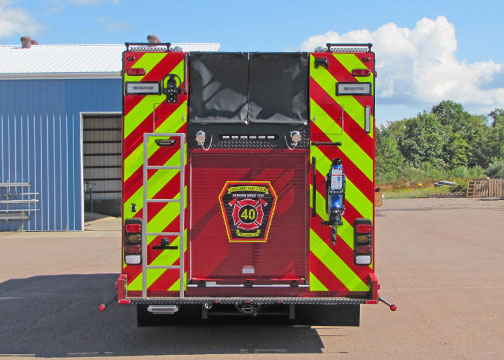

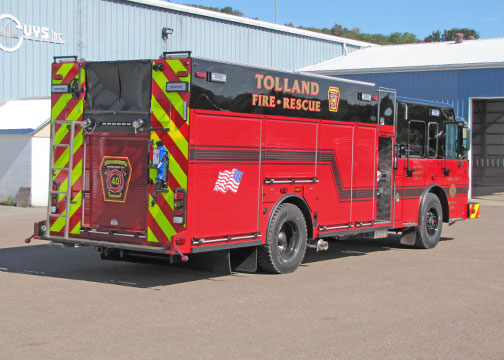

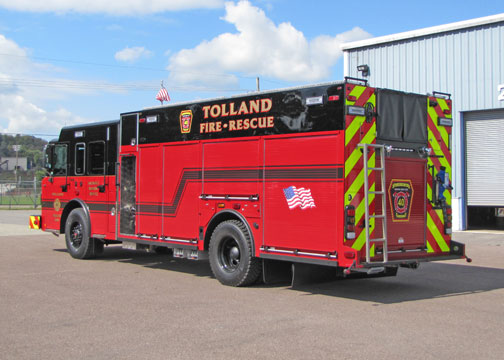

Driver Side	Driver Rear Corner	Rear	Officer Rear Corner

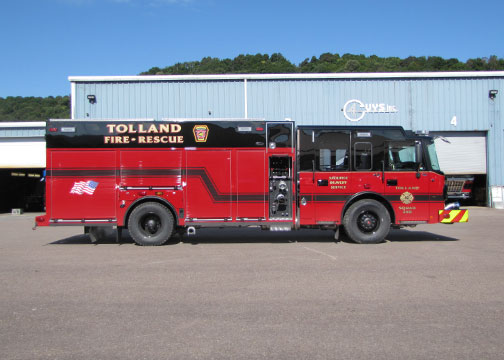

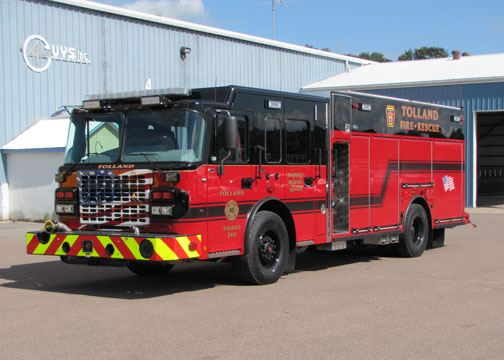

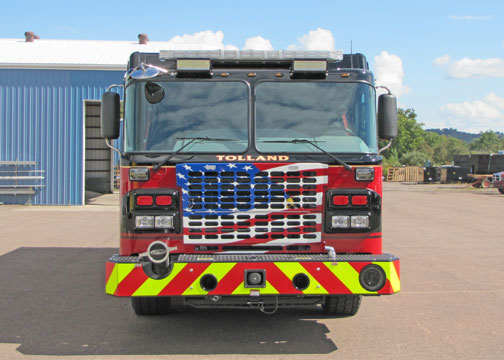

Officer Side	Officer Front Corner	Front	Driver Front Corner
