CHASSIS: Spartan Metro Star LFD 10"
ENGINE: Cummins L9 - 450 HP
PUMP: Waterous CSUC20 - 1500 GPM
OPERATOR'S PANEL: Side Mount
WATER TANK: 1000 Gallon Poly
NFPA LIGHTING: Whelen
FEATURES: Automatic Snow Chains on Rear Axle
   (2) EMS Compatments in Forward-Facing Outer Seat Positions
   (2) Electric Rewind Reels for 150 ft of 1 in Booster Hose
   Hi/Lo Tank for Lowered Hose Bed
   (2) 1-3/4 in Trashline Discharges in the Front Bumper
   Floating Sump Boxes in the Running Boards
   Suction Hose Compartments Inboard of Roll-Up Door Shutters
   Powered Ladder Lift over Right Side Compartments
   SCBA Compartments in Rear Wheel Wells
   Air Bag Storage Module in the R1 Compartment
   Train-Tone Air Horns
   Will-Burt Night Scan Light Tower on Cab Roof
   Roll-Up Doors on Body Compartments

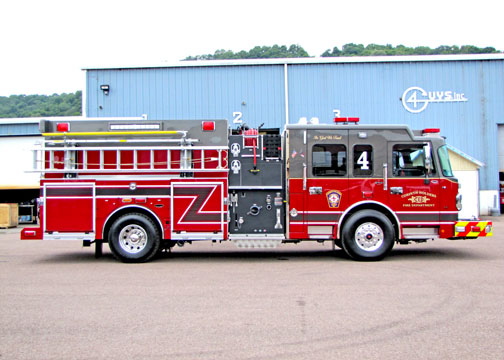

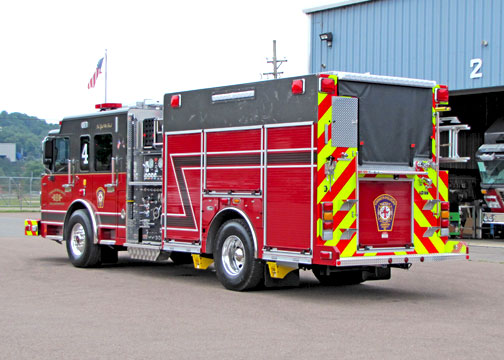

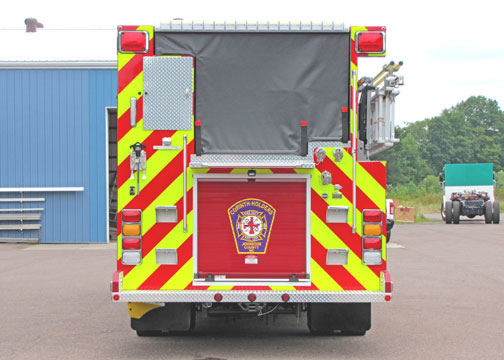

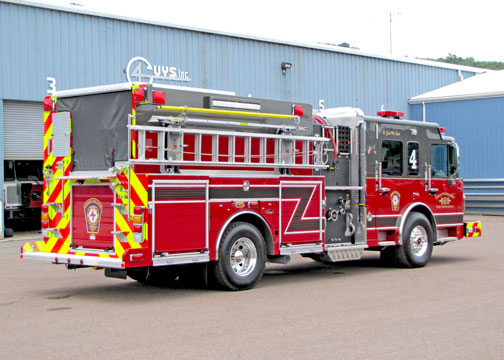

Left Side	Left Rear	Rear	Right Rear

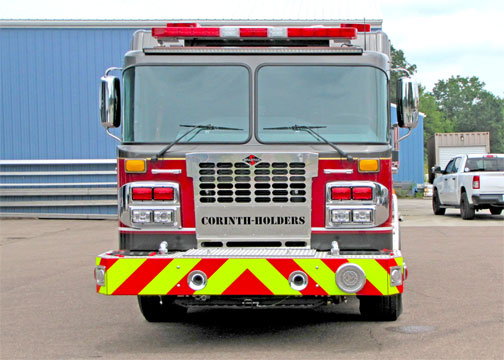

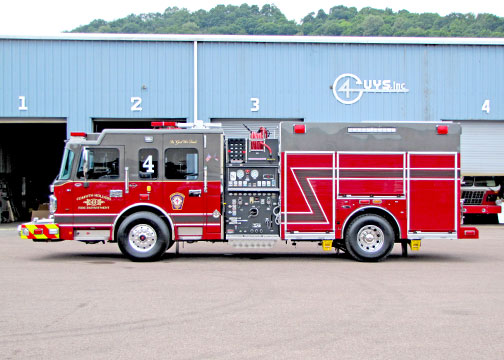

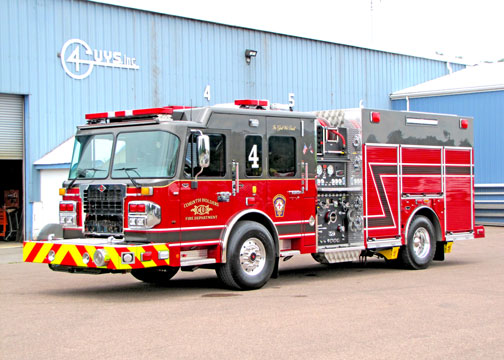

Right	Right Front	Front	Left Front
