Darien Center Chemical FC
Darien, New York

CHASSIS: Spartan Gladiator EMFD with 20 in. Raised Roof
ENGINE: Cummins X12 - 500 HP
PUMP: Hale QMAX - 1500 GPM
OPERATOR'S PANEL: Side Mount
WATER TANK: 3000 Gallon Poly
FOAM TANK: 30 Gallon Class "A"
REAR DUMP: 10" Square Electric with Electric Extension
SIDE DUMPS: 10" Square Electric with Electric Extensions
NFPA LIGHTING: Whelen
GENERATOR: 8 kW Harrison MAS Hydraulic
FEATURES: 6 in. Rear Suction
   2-1/2" Front Trashline
   Stainless Steel Rear Access Ladder
   Powered Portable Tank Lift System (Left Side)
   Stainless Steel Cover for Tank Lift System
   Suction Hose Compartment Under the T of the Tank (Both Sides)
   (1) Suction Hose Stored Over the Portable Tank Bracket
   Powered Ladder Bracket (Right Side)
   SCBA Bottle Comaprtments in Rear Wheel Wells
   SCBA Pack Comaprtments Between Rear Tandem Axles
   Rear Traffic Control Light
   Electric Rewind Reel for 250' of Electric Cord
   Rear Camera System

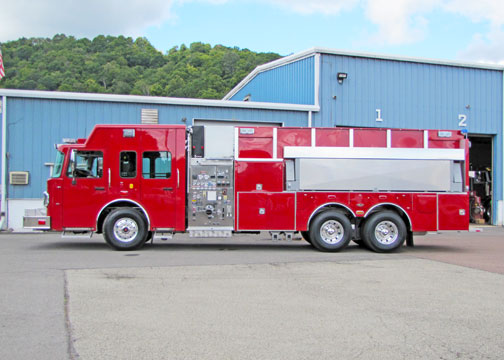

Left Side

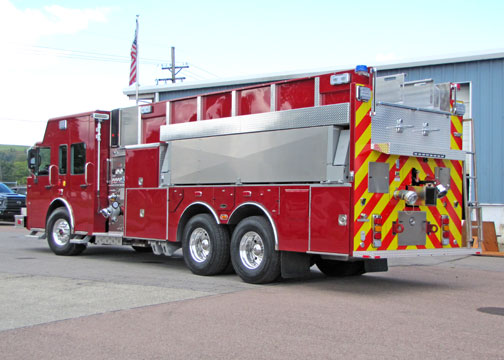

Left Rear

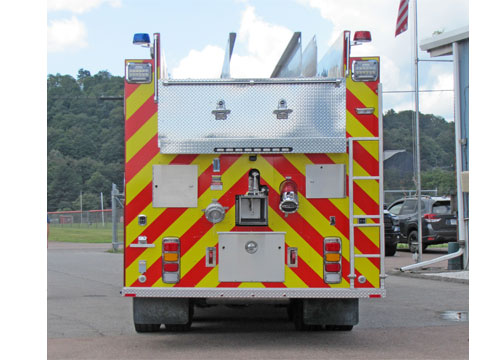

Rear

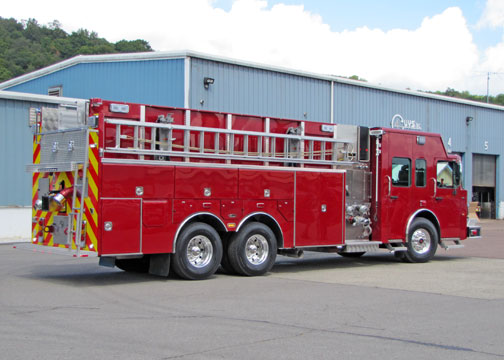

Right Rear

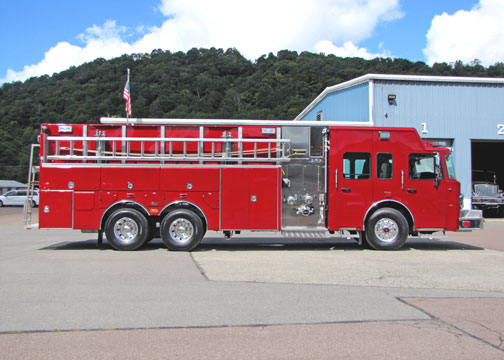

Right Side

Right Front

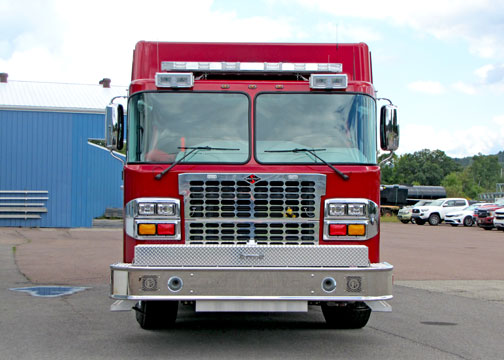

Front

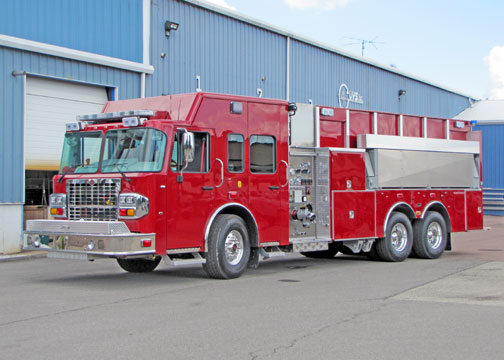

Left Front
