Franklin Community VFD
Mt. Airy, North Carolina

CHASSIS: Spartan Gladiator LFD w/ 10" Raised Roof
ENGINE: Cummins X12 - 500 HP
PUMP: Hale 8FG - 2000 GPM
OPERATOR'S PANEL: Side Mount
WATER TANK: 900 Gallon Poly
NFPA LIGHTING: Whelen
GENERATOR: 8,000 Watt Onan Hydraulic
FEATURES: Winch Receivers - Front, Rear, & Both Sides
   Automatic Snow Chains on Rear Axle
   Rear Camera System
   EMS Compartment in Crew Cab
   Electric Rewind Reel for 150 ft of 1 in Booster Hose
   Pump Panel Enclosed Behind Roll-Up Door
   Roll-Up Doors on Body Compartments
   Upper "Coffin" Compartments on Both Sides
   Folding Rear Access Ladder
   Suction Hose Compartment Behind Roll-Up Doors
   Ladder Compartment Throught the Tank
   SCBA Compartments in Rear Wheel Wells
   Rappelling Hoooks in Upper Body
   Rear Traffic Control Light

   Will-Burt Vertical Light Tower
   Electric Rewind Reel for 75 ft of 1/2 in. Air Hose
   Electric Rewind Reel for 250 ft of Electric Cord

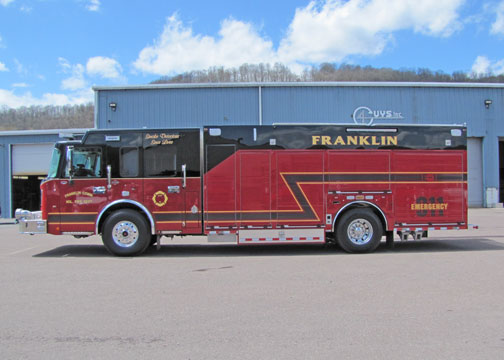

Driver Side

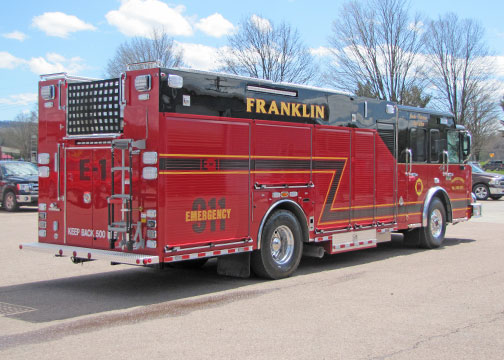

Driver Rear Corner

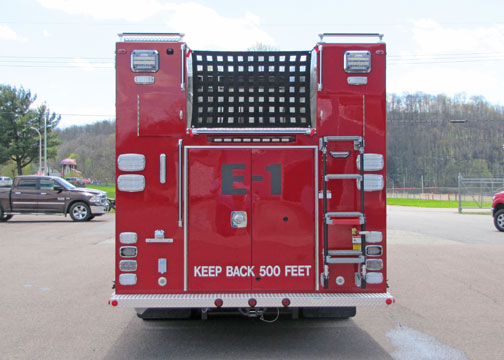

Rear

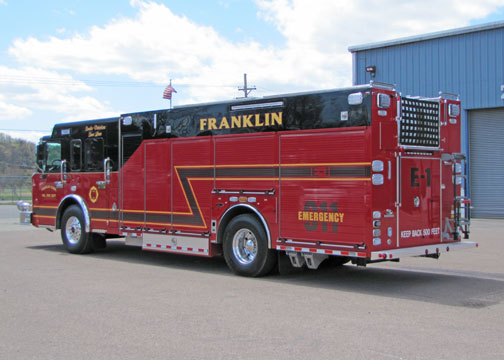

Officer Rear Corner

Officer Side

Officer Front Corner

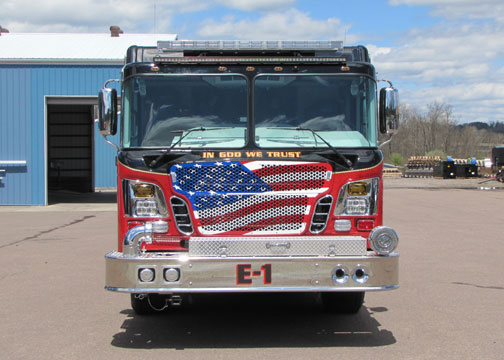

Front

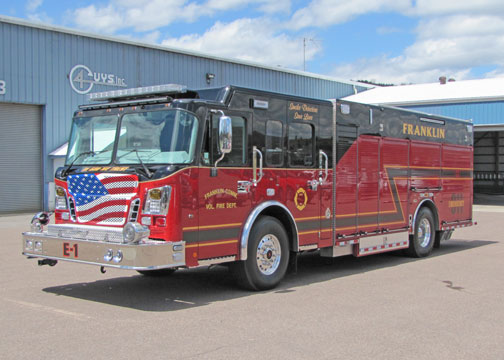

Driver Front Corner
