Huntsville FD
Madison, North Carolina

CHASSIS: Mack Granite 64FR
ENGINE: Mack MP8 - 505 HP
PUMP: Hale QMAX - 1500 GPM
OPERATOR'S PANEL: Side Mount
WATER TANK: 3000 Gallon Poly
REAR DUMP: 10" Square Electric w/ Electric Slide Extension
SIDE DUMP: 10" Square Electric Between Tandem Rear Axles
NFPA LIGHTING: Whelen
FEATURES: Electric Rewind Reel for 150 ft of Booster Hose
   Trident Air Primer
   Floating Sump Boxes in Pump Panel Steps
   Powered Tank Lift on Right Side
   Painted Aluminum Cover on Tank Lift
   Suction Hoses Through the Body
   Ladder Compartment Through the Body
   Spare SCBA Bottle Compartments in Rear Wheel Wells
   Roll-Up Doors on Body Compartments
   Rear Traffic Control Light

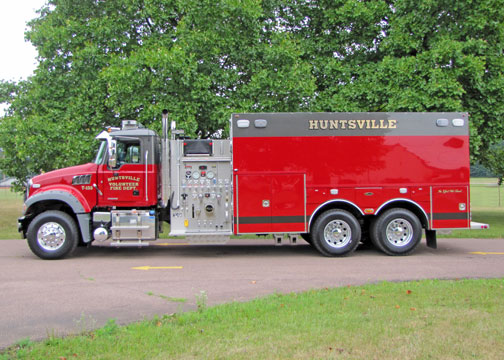

Left Side

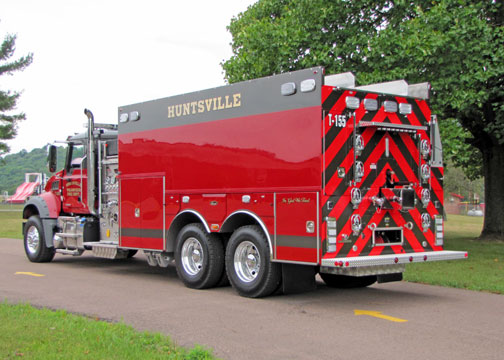

Left Rear

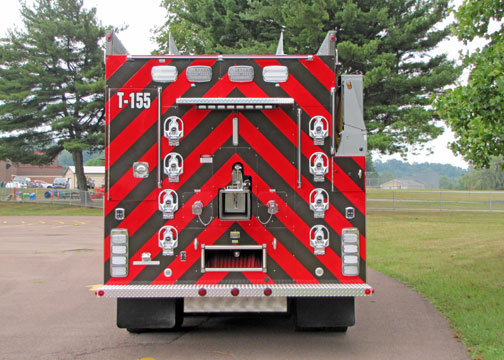

Rear

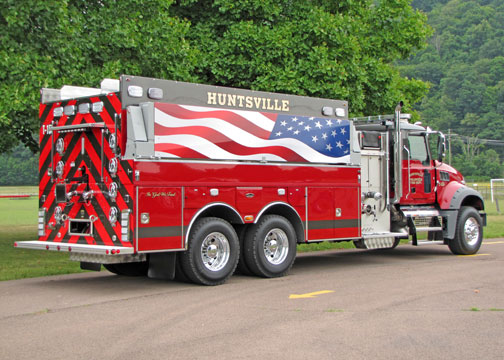

Right Rear

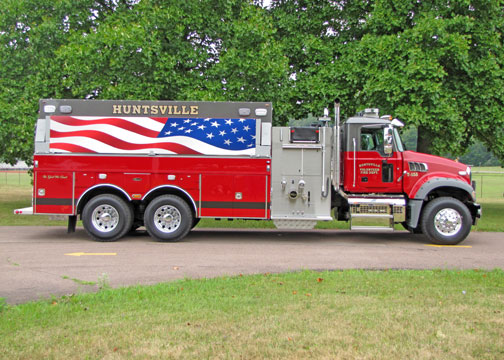

Right

Right Front

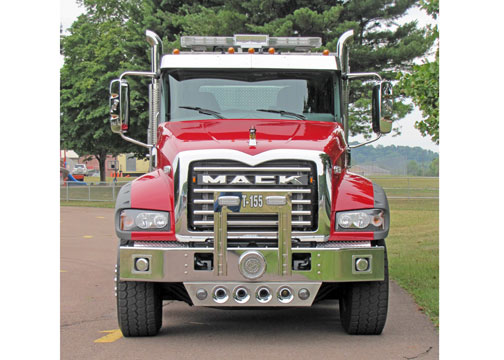

Front

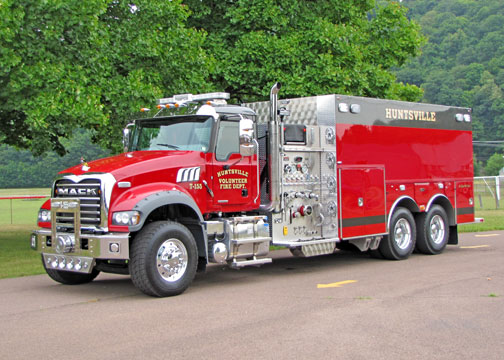

Left Front
