CHASSIS: Spartan Metro Star EMFD 10"
ENGINE: Cummins X12 - 450 HP
PUMP: Hale QMAX XS - 2000 GPM
OPERATOR'S PANEL: Side Mount
WATER TANK: 750 Gallon Poly
NFPA LIGHTING: Whelen
GENERATOR: 6 kW Harrison Hydraulic
FEATURES: EMS Compartment Between Rear-Facing Crew Seats
   6" Rear Suction
   Electric Rewind Reel for 150 ft of 1 in Booster Hose
   Hi/Lo Tank for Lowered Hose Bed
   Upper Coffin Compartments
   Oil-Dry Hopper in Right Coffin Compartment
   Manual Aluminum Diamond Plate Hose Bed Cover
   Stainless Steel Rear Access Ladder
   Ladder Compartment Through the Body
   SCBA Compartments in Rear Wheel Wells
   Roll-Up Doors on Body Compartments
   Electric Rewind Reel for 150 ft of 10/4 Electric Cord

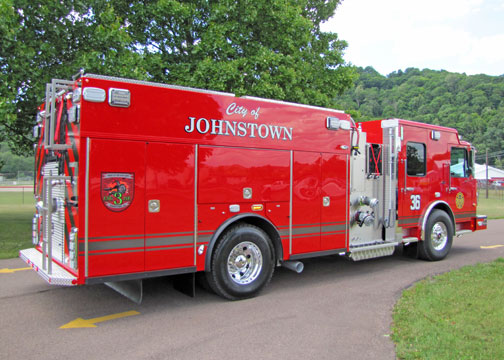

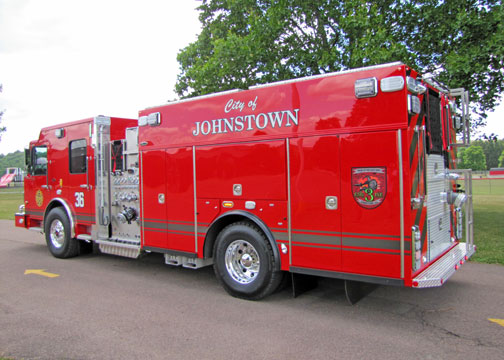

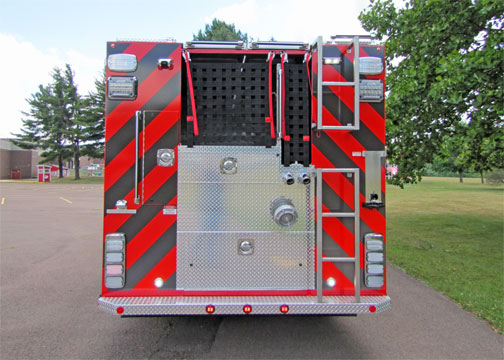

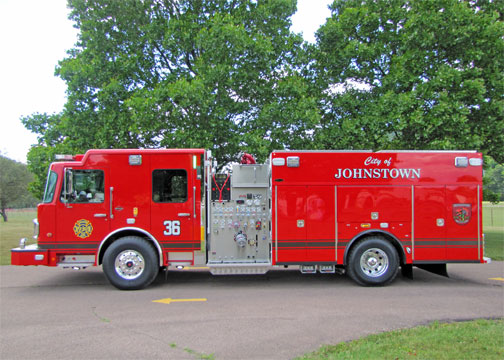

Left Side	Left Rear	Rear	Right Rear

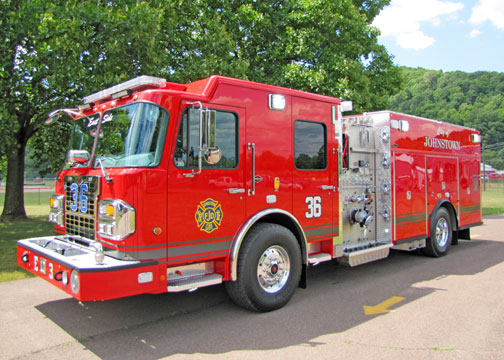

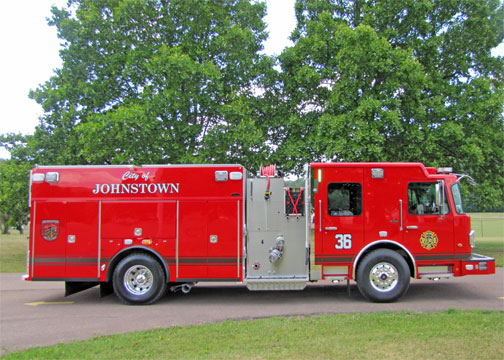

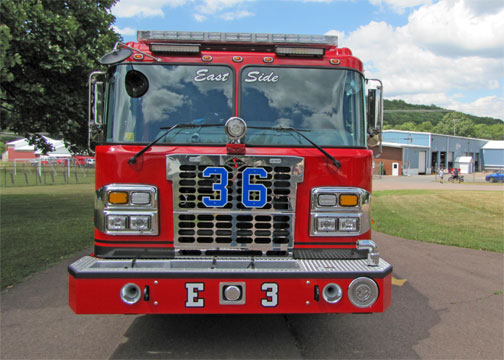

Right	Right Front	Front	Left Front
