CHASSIS: Spartan Gladiator LFD 10"
ENGINE: Cummins L9 - 450 HP
PUMP: Waterous CSUC20 - 2000 GPM
OPERATOR'S PANEL: Top Mount
WATER TANK: 1018 Gallon Poly
FOAM TANK: 30 Gallon Integral
FOAM SYSTEM: Foam Pro 1600
NFPA LIGHTING: Whelen
GENERATOR: 6 kW Harrison MAS Hydraulic
FEATURES: Rear Camera System
   6 in. Vertical Swivel Front Suction
   2.5" Front Trashline
   All Stainless Steel Diamond Plate
   Suction Hose & Ladder Compartment Below Hose Bed
   SCBA Pack Compartment in Forward Section of Driver Wheel Well
   SCBA Bottle Compartments in Wheel Wells
   Roll-Up Doors on Body Compartments
   Electric Rewind Reel for 200 ft of 10/3 Electric Cord

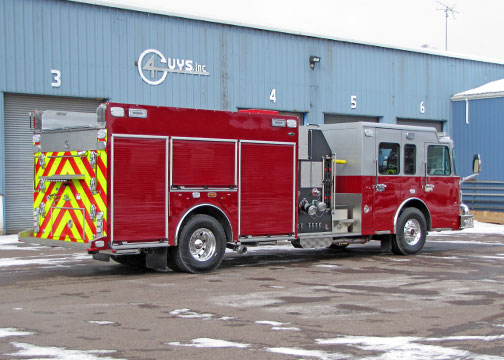

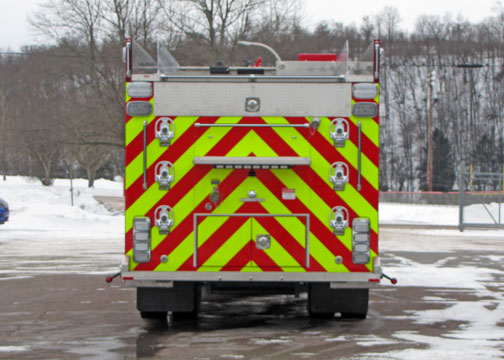

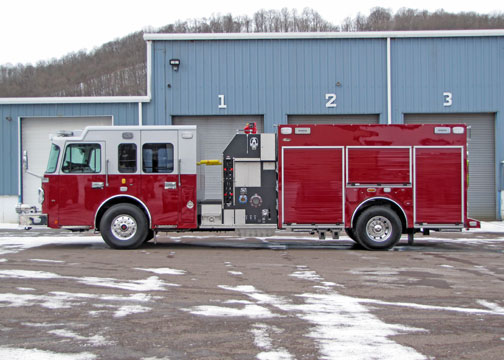

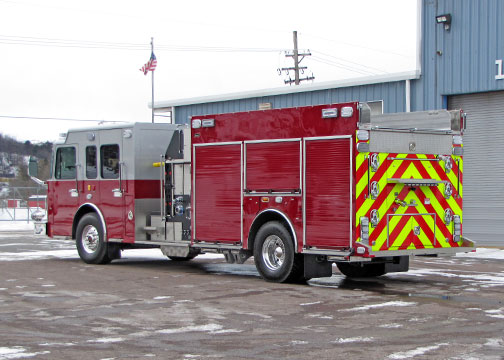

Driver Side	Driver Rear Corner	Rear	Officer Rear Corner

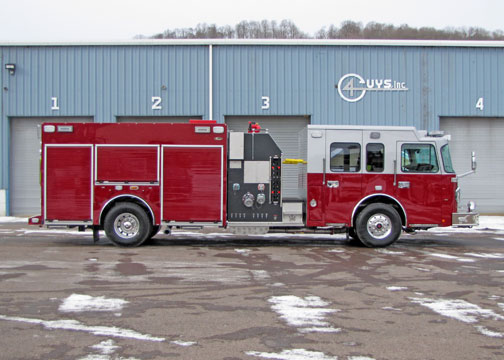

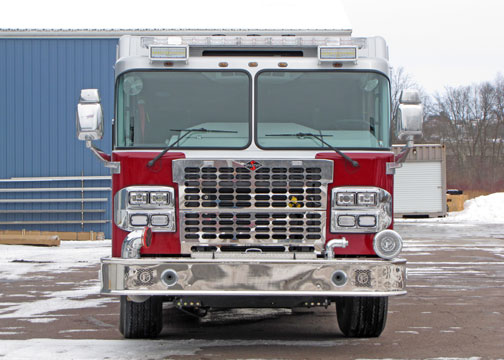

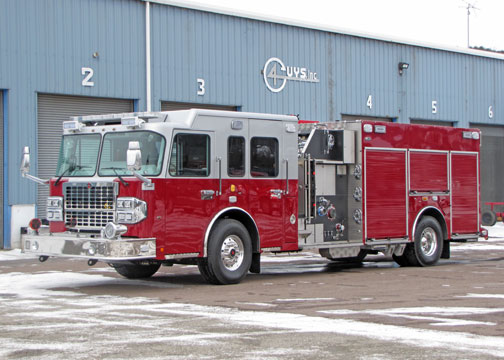

Officer Side	Officer Front Corner	Front	Driver Front Corner
