CHASSIS: Spartan Gladiator ELFD 10"
ENGINE: Cummins X15 - 565 HP
PUMP: Hale QMAX - 1500 GPM
OPERATOR'S PANEL: Side Mount
WATER TANK: 2500 Gallon Poly
FOAM TANK: 50 Gallon (Integral)
REAR DUMP: 10" Square Electric w/ 18" Electric Extension
SIDE DUMPS: 10" Square Electric w/ 18" Electric Extensions Between Rear Axle
NFPA LIGHTING: Whelen
GENERATOR: 8 kW Harrison Hydraulic
FEATURES: Rear & Side Camera System
   Trident Air Primer
   6 in. Horizontal Front Suction
   Electric Rewind Reel in Right Side Dunnager Area for 150 ft of 1 in Booster Hose
   (2) 1-3/4 in. Front Bumper Speedlays
   (2) Suction Hoses on V-Trays Over Left Compartments
   Powered Ladder Lift over Right Side Compartments
   Spare SCBA Bottle Compartments in Rear Wheel Wells
   Roll-Up Doors on Body Compartments
   Rear Traffic Control Light
   Electric Rewind Reel for 250 ft of Electric Cord

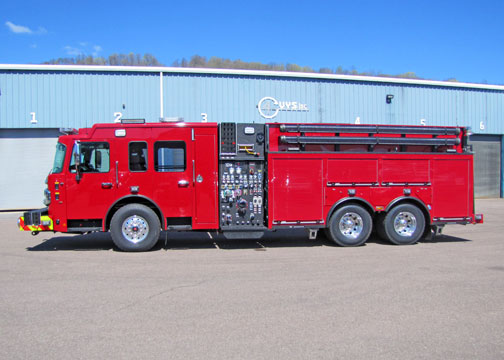

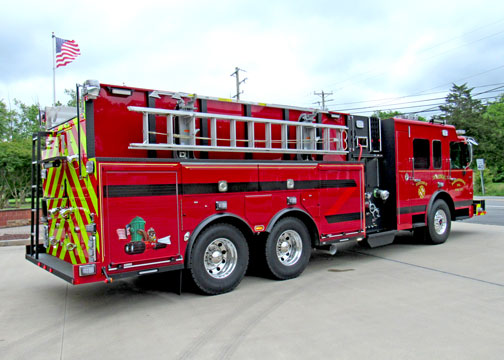

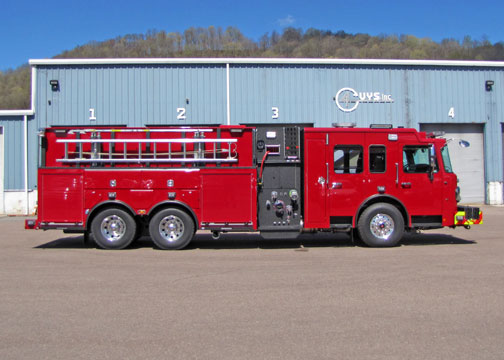

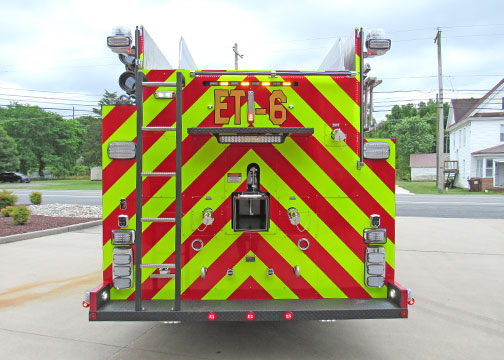

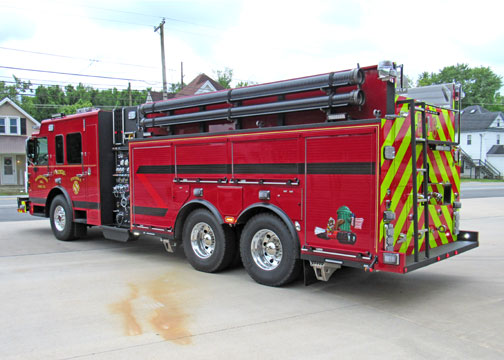

Left Side	Left Rear	Rear	Right Rear

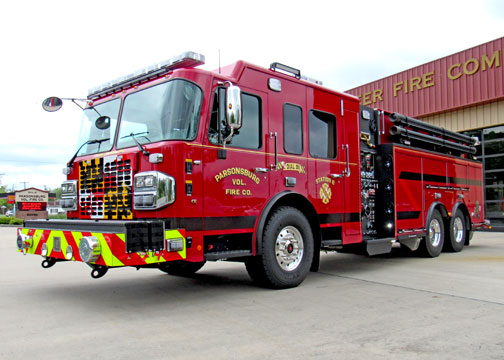

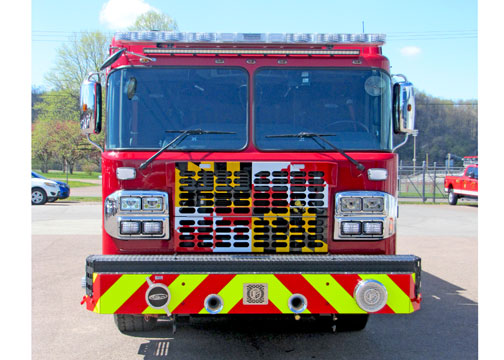

Right	Right Front	Front	Left Front
