CHASSIS: Spartan Metro Star EMFD 20"
ENGINE: Cummins L9 - 450 HP
PUMP: Waterous S100 - 1750 GPM
OPERATOR'S PANEL: Side Mount
WATER TANK: 1000 Gallon Poly
FOAM TANK: 10 Gallon (Integral)
FOAM SYSTEM: Foam Pro 1600
NFPA LIGHTING: Whelen
FEATURES: Winch Receivers Front and Rear
   EMS Compartments in Rear-Facing Center Seat Position
   Upper Interior Compartments Over Forward-Facing Crew Seats
   1-3/4" Front Trashline
   Full-Width Hose Bed
   Left Upper Coffin Compartment
   Pull-Out Speedy-Dry Hopper in Left Wheel Well
   SCBA Cylinder Compartments in Rear Wheel Well
   Roll-Up Doors on Body Compartments
   Will-Burt Light Tower with (2) 1750 Lumen Light Heads

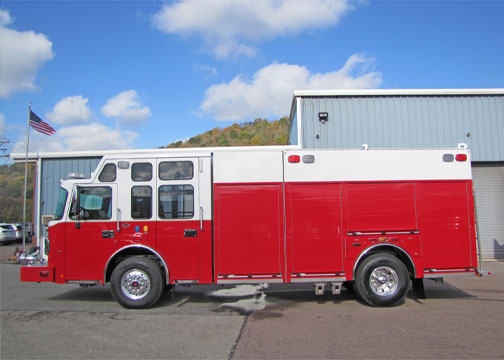

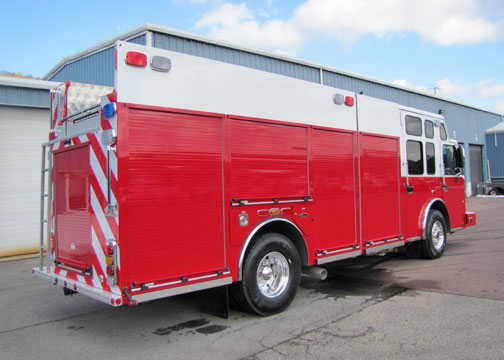

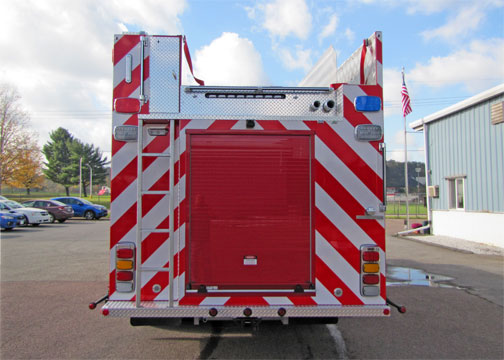

Left Side	Rear	Right Rear

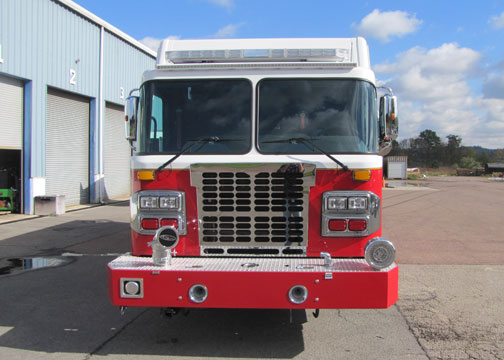

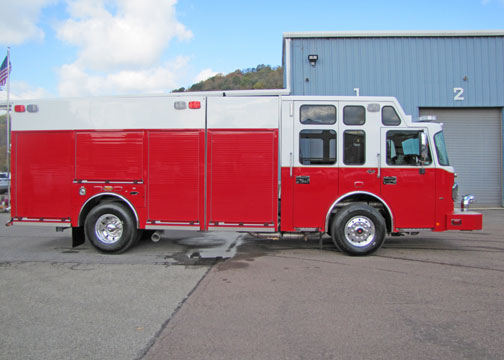

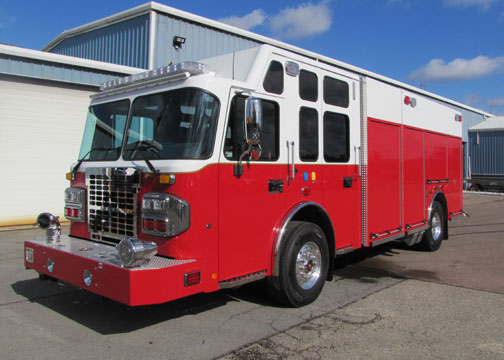

Right	Right Front	Front	Left Front
